The characteristics of ：

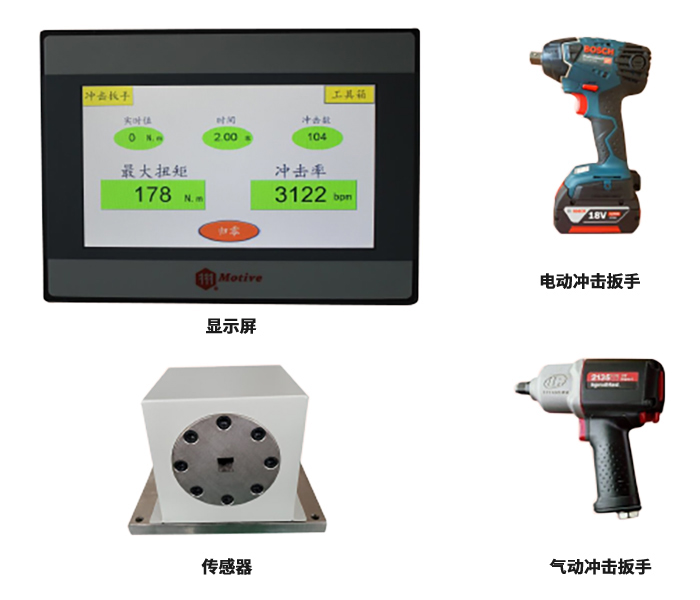

Impact spanner tester is the latest generation of comprehensive test instrument for impact spanner. The super performance platform captures the true pulse pattern of impact pulse, and the analysis of pulse pattern can accurately obtain the impact number and maximum torque. The performance of the impact tool is clear in the measured data of the instrument.
Specification
Model Name | ACI959-QLFG-500N.m | ACI959-QLFG-1000N.m | ACI959-QLFG-2000N.m | ACI959-QLFG-3000N.m | |||
Measurement Range | 50-500N.m | 100-1000N.m | 200～2000N.m | 300～3000N.m | |||
Accuracy | ±1% | ||||||
Display | 7 " TFT Color screen display ，（You can customize company content) | ||||||
Torque According Model 式 | PEAK | Maximum torque | |||||
TRACK | The torque value is shown in real time with the torque change | ||||||
Hit rate | Number | 0-9999 times/min | |||||
Measuring Time | Effective measurement time is more than 2 seconds | ||||||
Display | Four-digit display | ||||||
Power Supply | AC100V-220V | ||||||
Weight | Display | About 600g | |||||
Detection Machine | About 20kg | ||||||
