一、Product Application
It is suitable for plug-in and pull-out testing of connectors. Through computer analysis, it can accurately measure the load and the corresponding change curve of the stroke of the object to be tested, and accurately control the insertion and withdrawal stroke, speed, set times and pause time. . In particular, the special fixtures can make the connector more automatically aligned during the test, and there is no problem of "single side". In addition, the machine uses a servo motor and Windows window control system, which is easy to operate and all materials can be stored. It is definitely a reliable high-performance test instrument.
二、Product Parameters
Maximum test load |
0—50Kg |
Load cell minimum reading |
0.01kgf |
Maximum range of movement |
150mm |
Minimum fine adjustment distance |
0.01mm |
Test speed range |
0 ~150mm/min |
Fixture plate size |
Φ200mm |
Control system size |
450mm X 560mm X 100mm |
Machine power supply |
AC220V 50HZ |
Maximum test load |
0—50Kg |

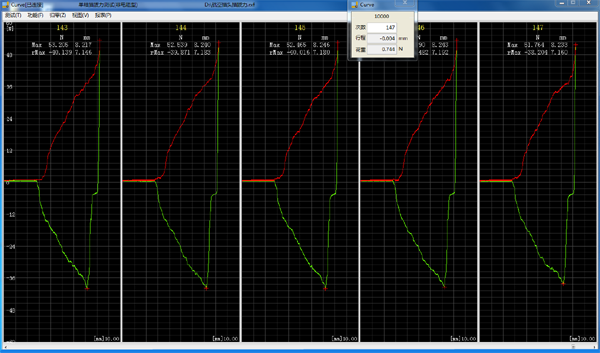

Insertion Force Curve
